Automatic Concrete Steel Cage Forming Machine,Welding Manipulator

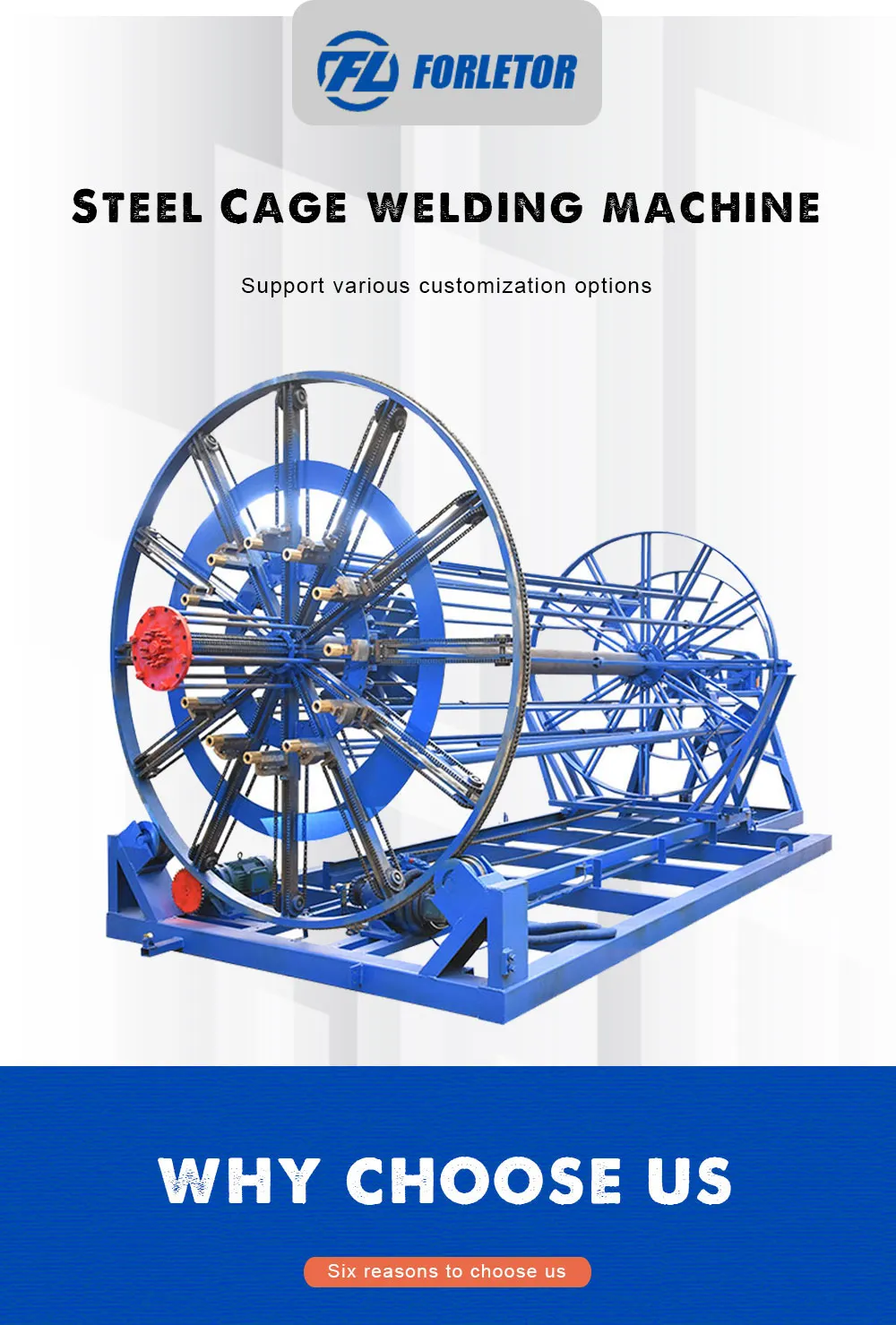

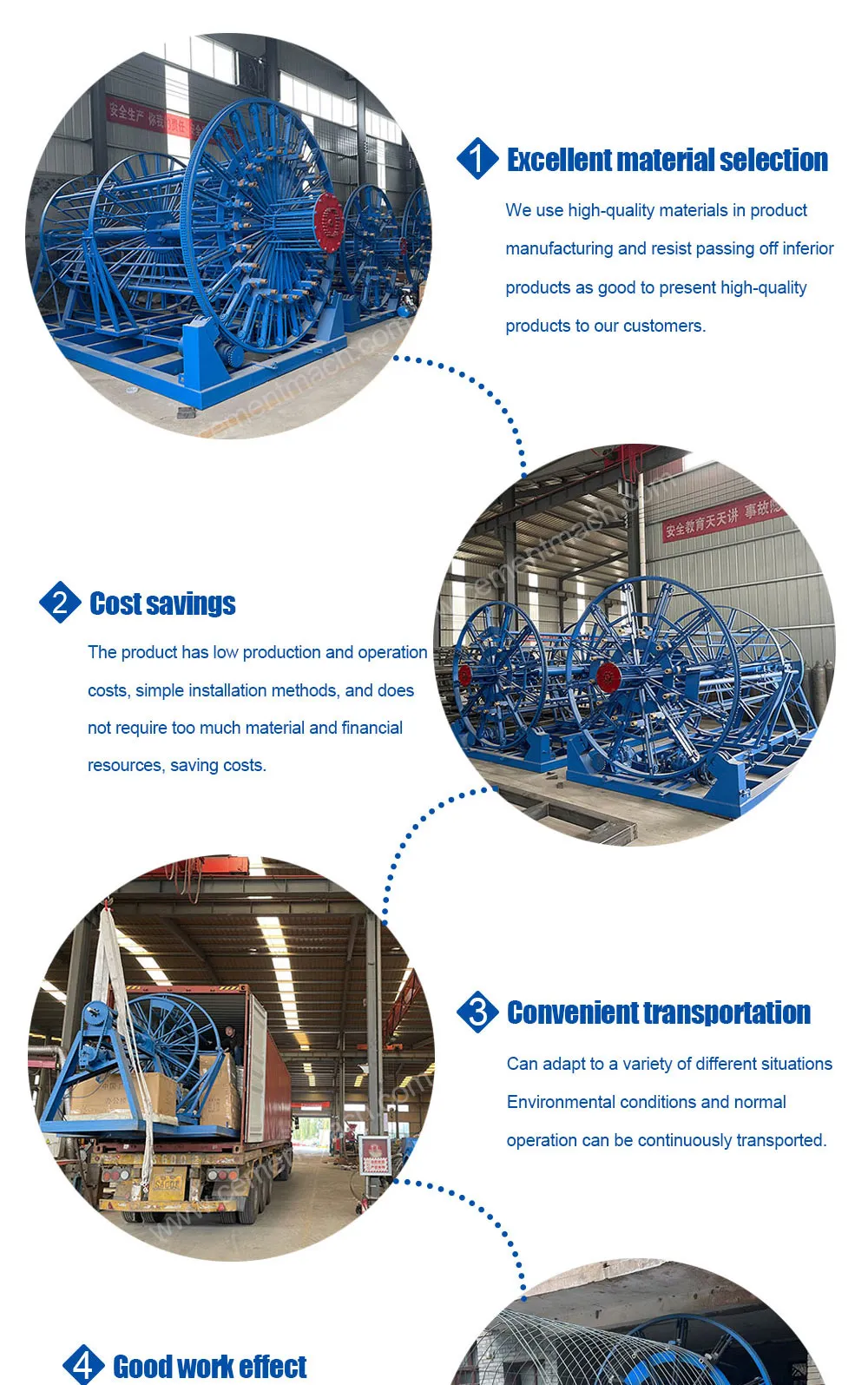

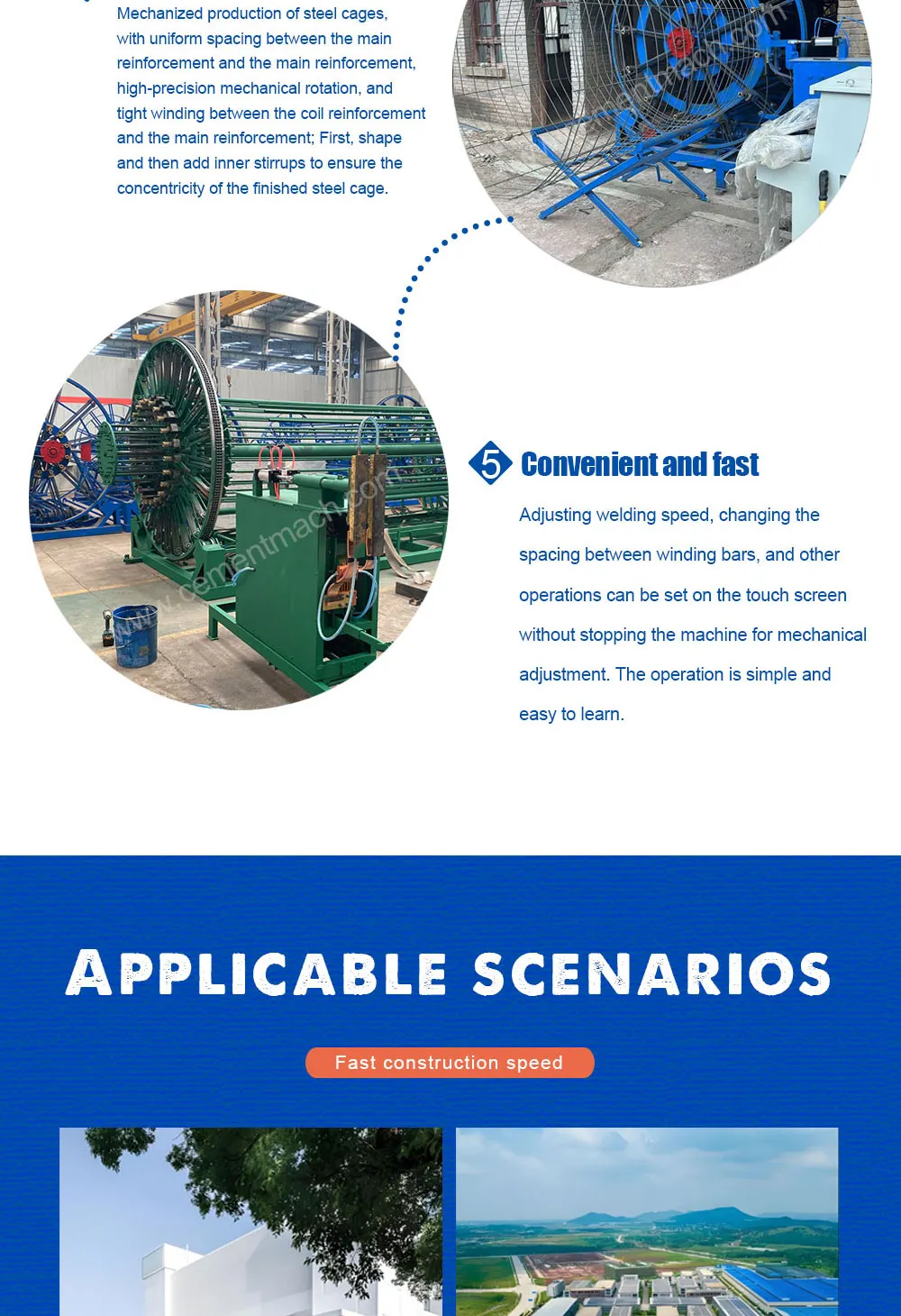

Steel cage welding machine.
This machine is a special welding equipment for making reinforced concrete drainage pipe。It is suitable for welding sockets and flat-mouth reinforced skeletons. It is one of the main equipment for producing reinforced concrete drainage pipes.

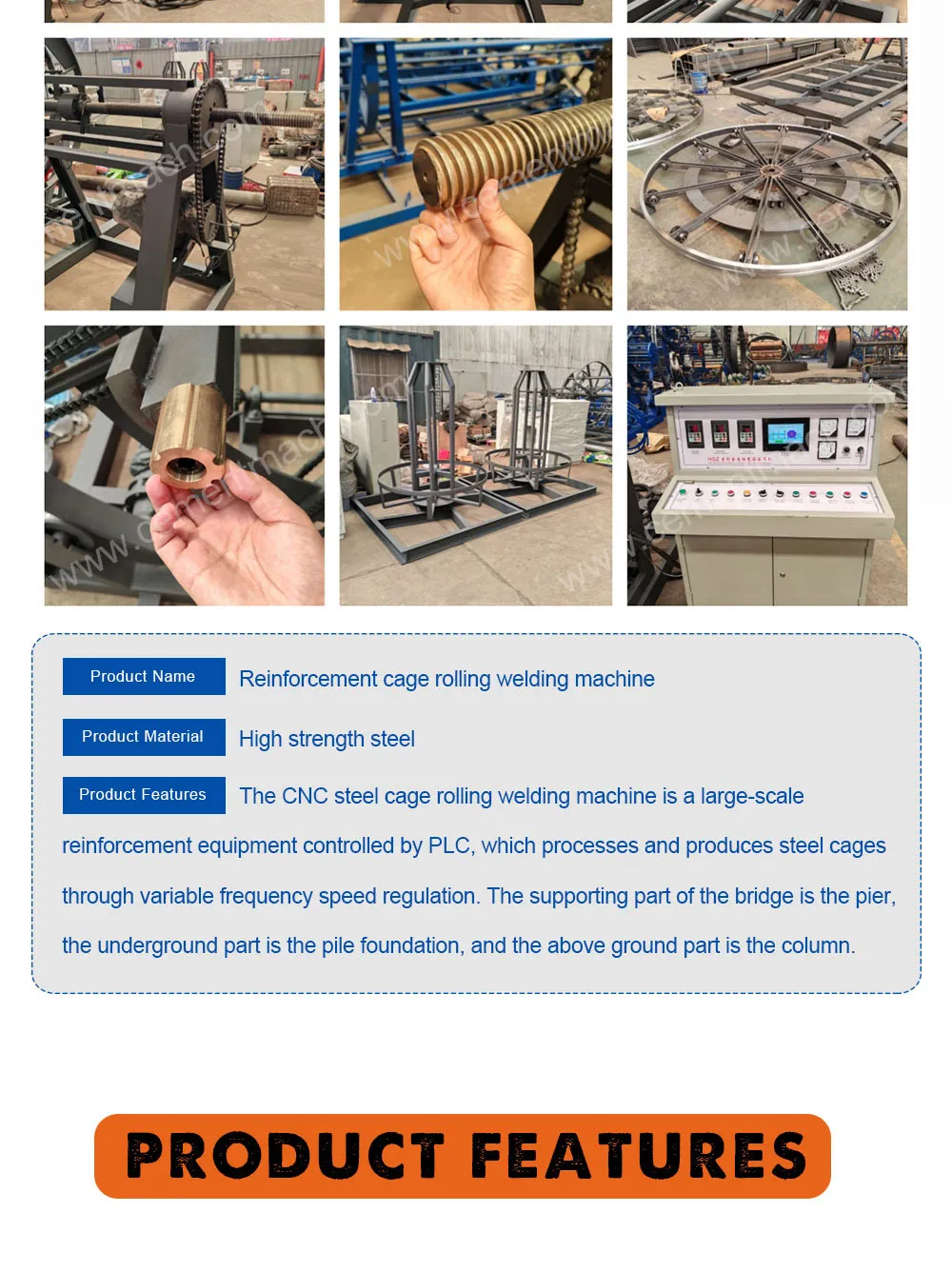

Working principle

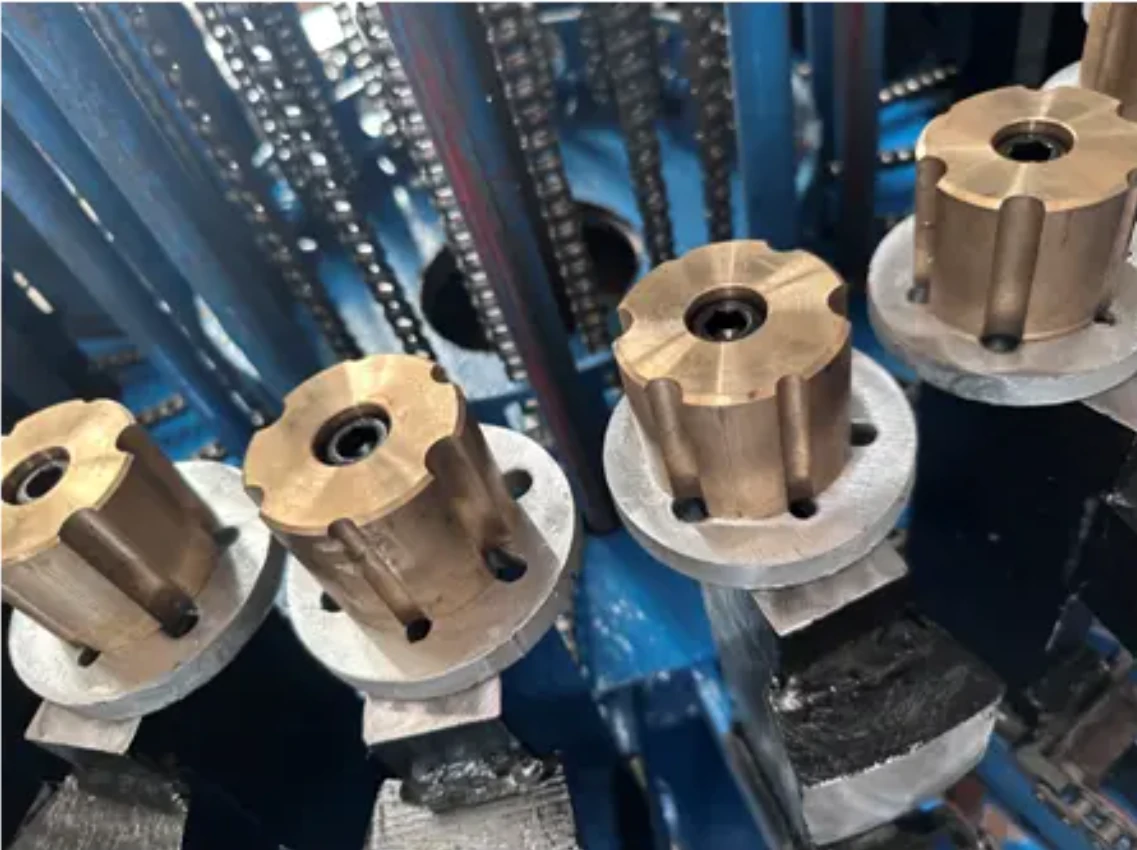

This machine includes three plates , one is the main plate rotating, the second plate is pushing wire, the other plate is used to Diameter-transformed automaticly. The three plates are controlled and drove by its own motor and variable Frequency control system.

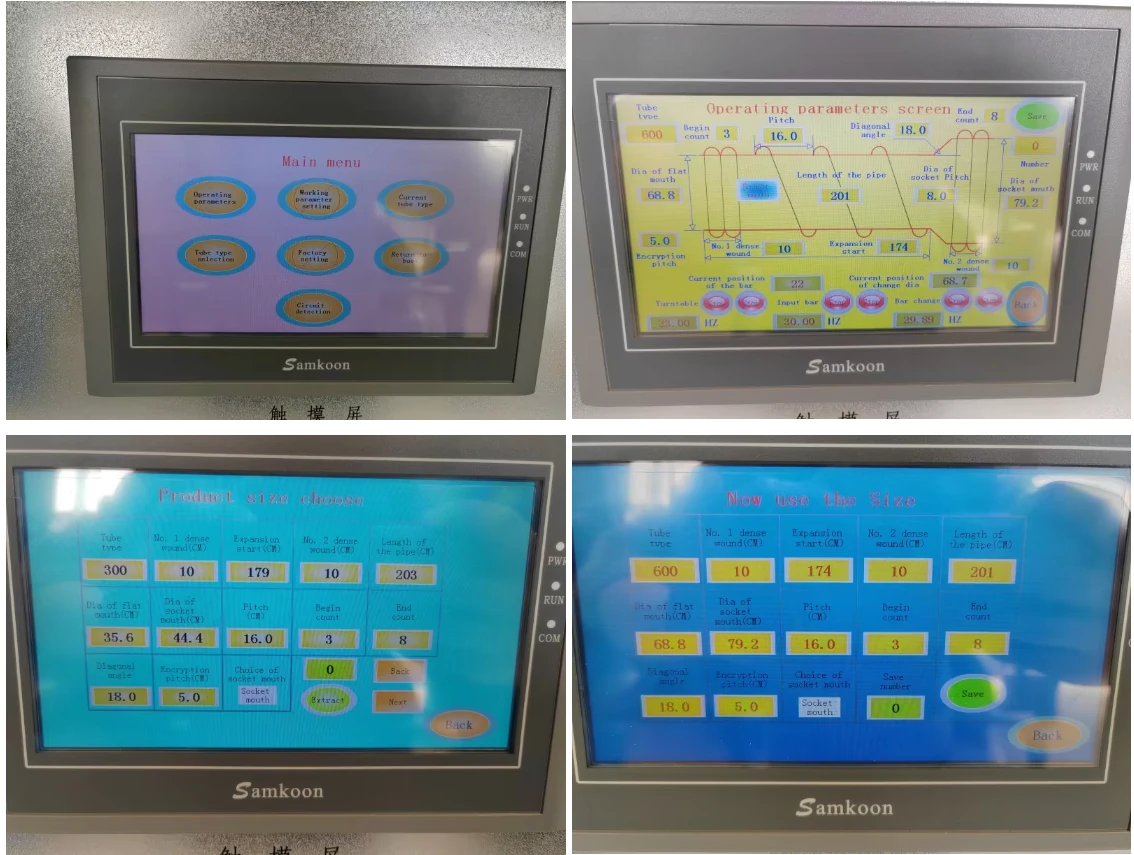

| Items | HGZ300-1500 | HGZ800-2400 | HGZ1350-3000 |
| Pipe diameter | 300-1200/300-1500 | 800-2000/800-2400 | 1350-2400/1350-3000 |
| End joint | Flush & bell joint | Flush & bell joint | Flush & bell joint |
| Pipe length | 1-4m | 1-4m | 1-4m |
| Longitudinal steel bar dia | Max.8mm | Max.12mm | Max.12mm |
| Winding steel bar dia, | Max.8mm | Max.12mm | Max.12mm |
| Number of longitude bar | 12 pcs | 24 pcs | 32pcs |
| Winding pitch | 20-150mm | 20-200mm | 20-200mm |
| Angel of spigot | 10.-25. | 10.-25. | 10.-25. |
| Rotation speed of master plate | 0-10 r/min | 0-10 r/min | 0-10 r/min |
| Power of motor | 0.55+0.75+1.1+2.2kw | 1.1+2.2+3+5kw | 1.5+2.2+3+7.5kw |
| Power transformerof welder | 100K VA | 250K VA | 200K VA |
| Production time per cage | 3-5MIN | 4-10MIN | 6-12MIN |
