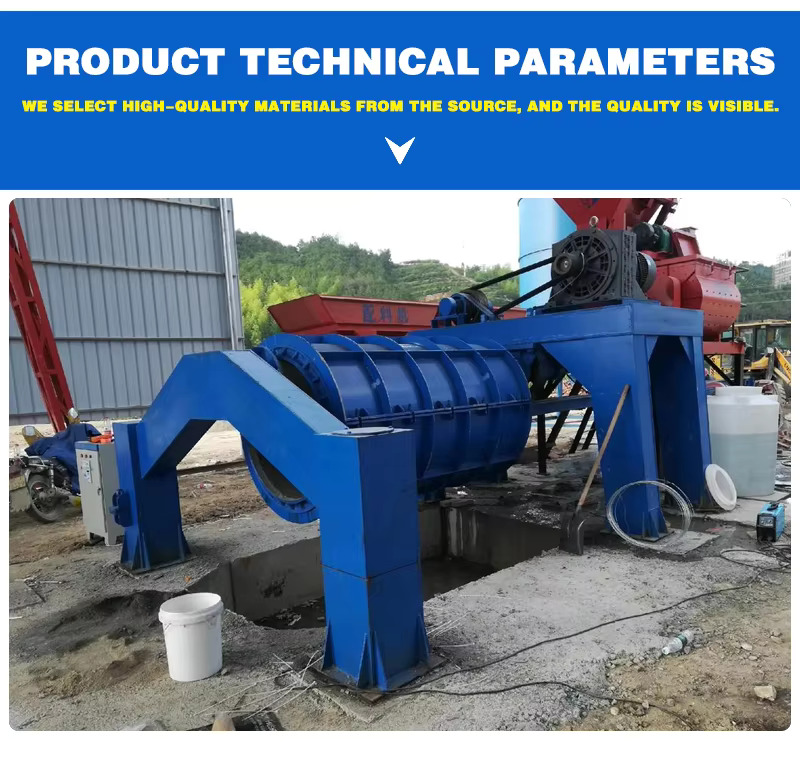

Description
|
Model
|
Power(KW)
|
Diameter(mm)
|
Weight(KG)
|
Dimension(mm)
|
|
RNXG（300-400）
|
9
|
89
|
900
|
3200X1300x1800
|
|
RNXG（300-600）
|
15
|
100
|
1000
|
3500x1700x1900
|
|
RNXG（300-800）
|
22
|
120
|
1150
|
3700x1800x2000
|
|
RNXG（600-1000）
|
30
|
140
|
1700
|
4100x2100x2200
|
|
RNXG（800-1200）
|
45
|
180
|
2000
|
4200x2100x2300
|
|
RNXG（800-1500）
|
55
|
240
|
3000
|
4500x3100x2500
|
|
RNXG（1200-2000）
|
110
|
320
|
4700
|
5100x3400x2500
|
|
RNXG（1500-2400）
|
150
|
450
|
8900
|
5400x4100x2700
|

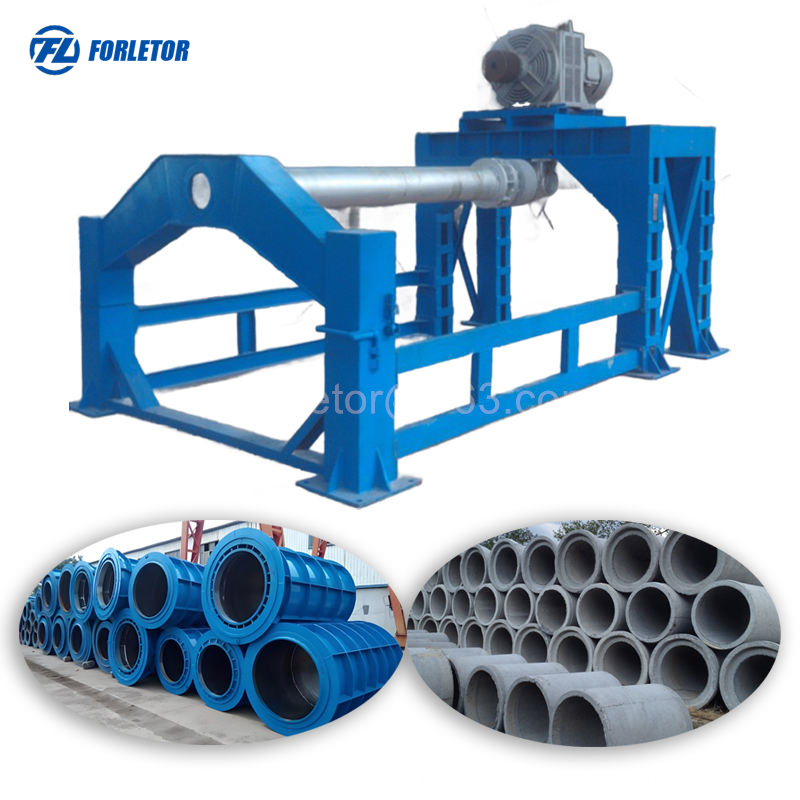

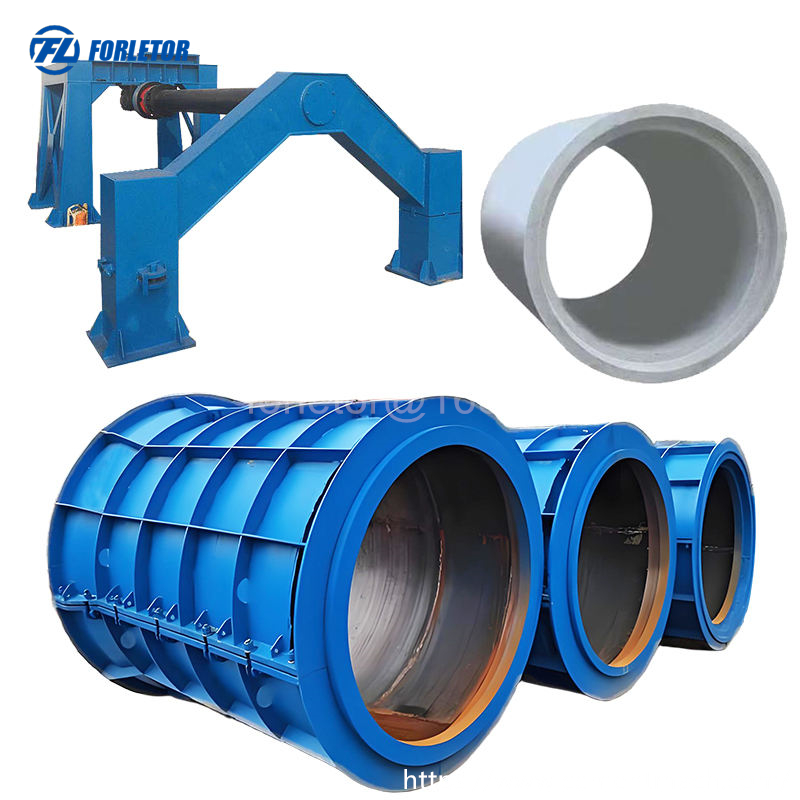

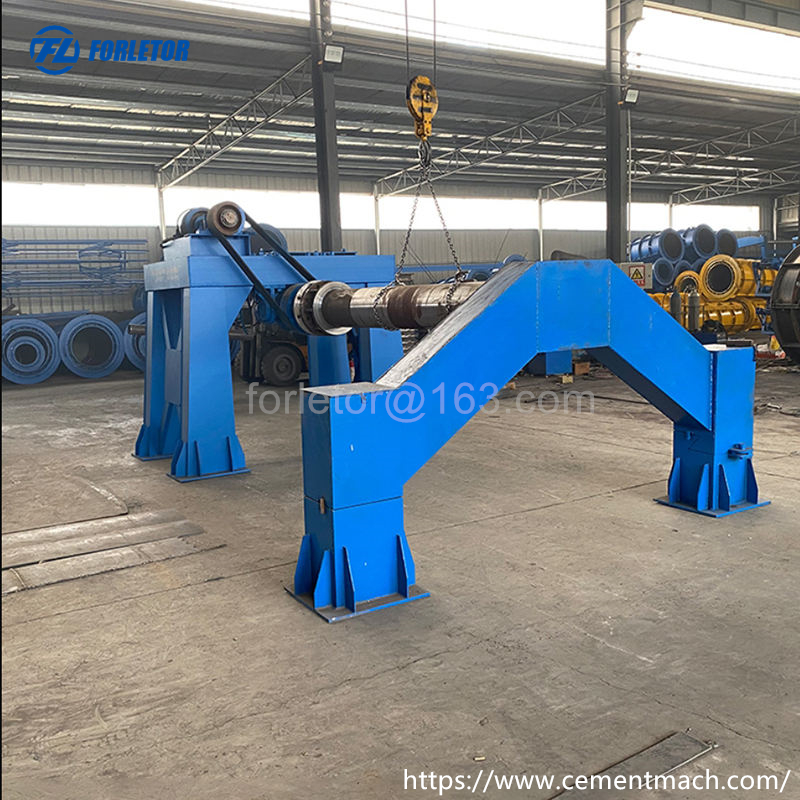

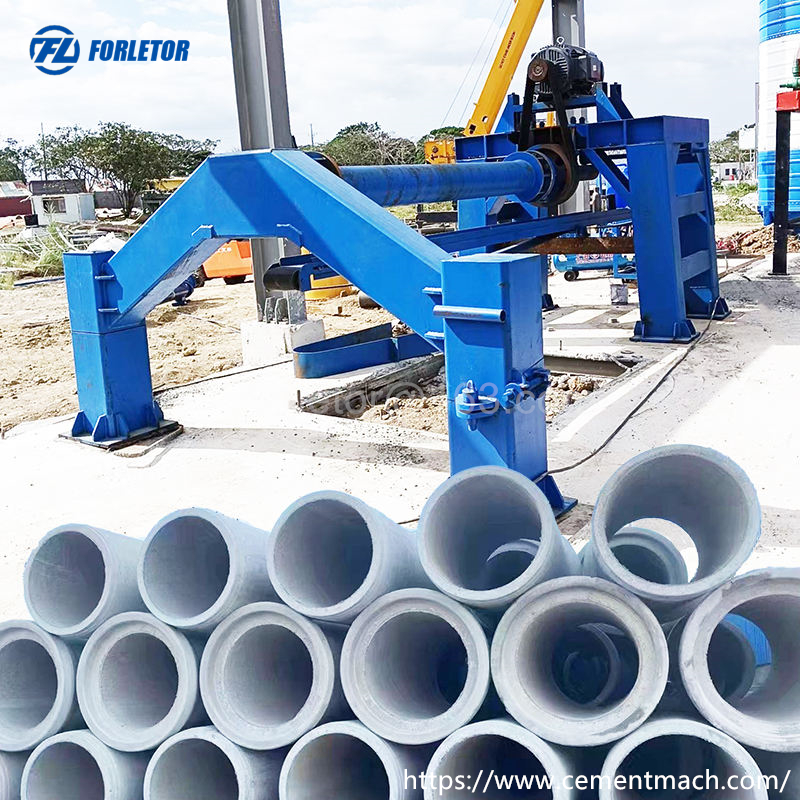

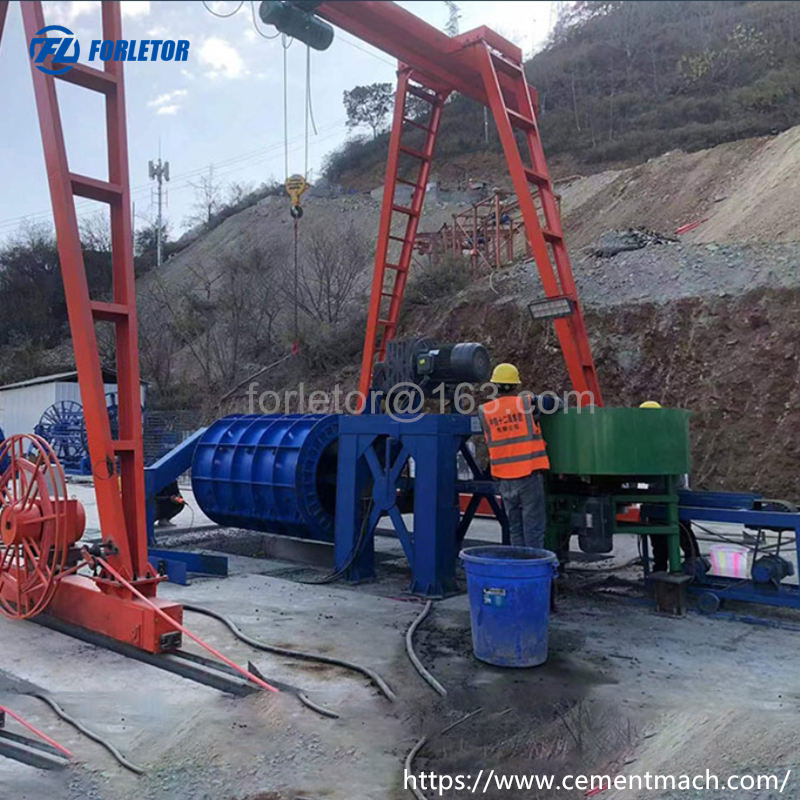

This machine uses the Roller to support the concrete pipe mould, and produce the roller force to concrete in the mould. When the roller rotate at a high speed, the concrete in the mould will spread in the inner wall of the pipe mould and form a cement pipe with the centrifugal force, and when the mould with the inner concrete pass on the roller, the concrete etween the mould and the roller will be compacted solid to form a pipe.

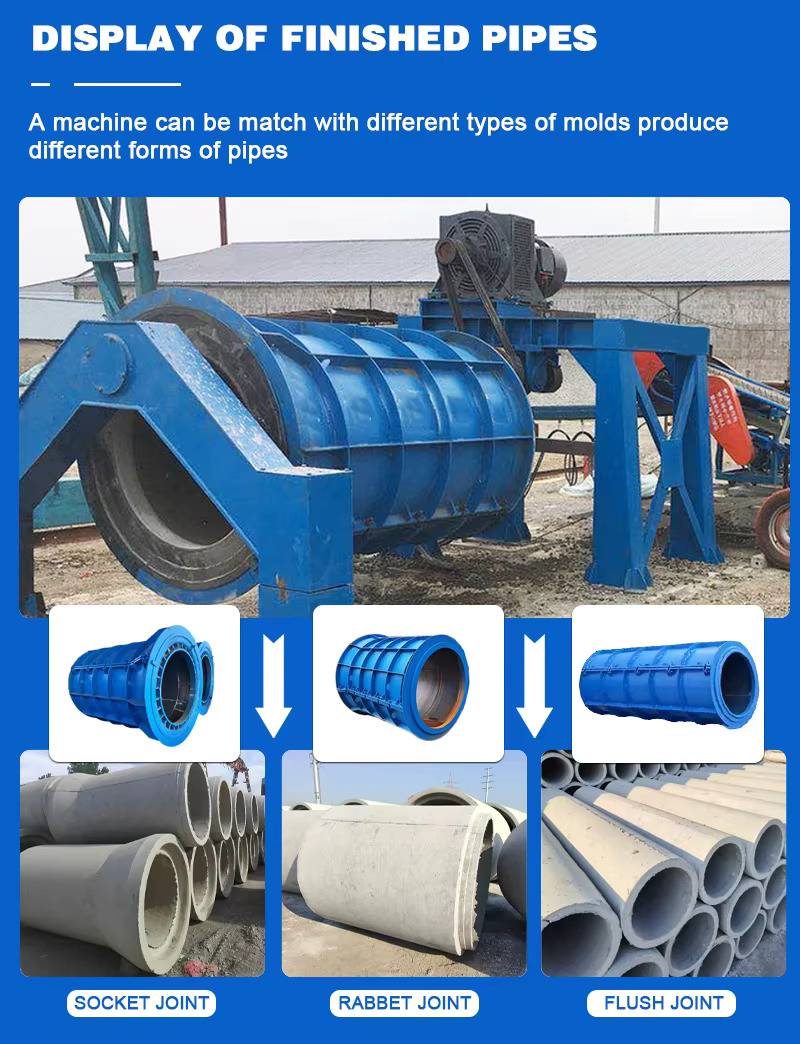

Just let us know your desired size parameters, and our team will customize both the machine and its matching mold exclusively for
you.
